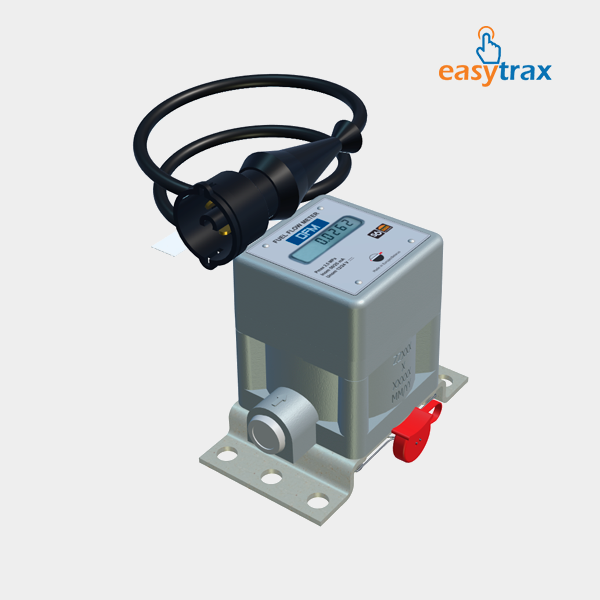

DFM fuel flow meter

DFM fuel flow meter

Sold By: Easytrax World


DFM is designed for fuel consumption measurement in fuel lines of vehicles and stationary machines, also for operating time monitoring in different working modes of engine.

DFM fuel flow meter is used for consumption measurement of the following fluids:

  • diesel fuel
  • heating oil
  • other liquid fuels and mineral oils with kinematic viscosity of 1.5 to 6 mm2/s.

DFM is a tool for direct measurement of fuel consumption, which is used as a part of GPS tracking system, vehicle telematics system or as an stand-alone (autonomous) solution for fuel consumption monitoring.


Connecting thread M14x1.5
Nominal pressure, bar 2
MAX pressure, bar 25
Supply voltage, V 10-50
Overvoltage protection, V ≤100
Current consumption, mA (24 V/12 V), mA 25 / 50
Operating temperature, (without/with display), °C -40..+80/
Ingress Protection Rating IP54
Relative accuracy error per chamber, %, not more than 1
