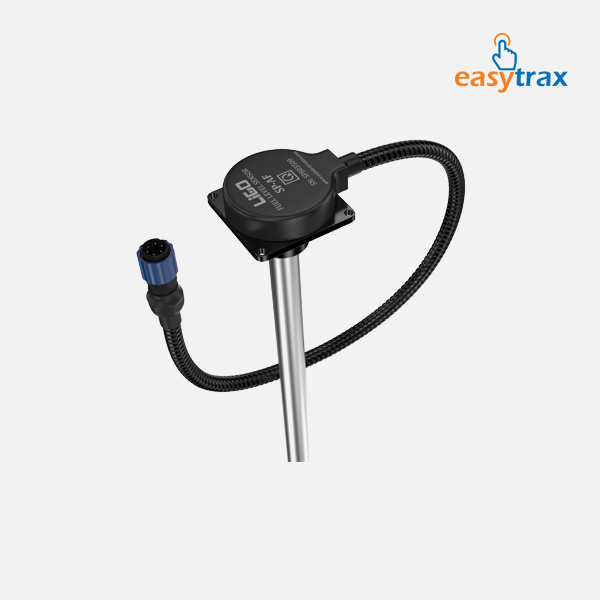

LIGO SP – AF FUEL LEVEL SENSOR

LIGO SP – AF FUEL LEVEL SENSOR

Sold By: Easytrax Ltd.
SKU: ETSFMS020 Categories: ,

Description

General description

LIGO SP – AF is a special improvement line, a product of the research team of Soji Electronics fuel level sensor. Changes in the mechanical design help the sensor achieve high accuracy and durability.

SPECIFICATIONS:

Parameter Value
DC input voltage, V 9-37
Standard length  (L),mm 700, 1000, 1500…up to 6000 mm
Power consumption(W)

Typical

Maximal

At short circuit on analog output, maximum



0.24

0.4

1.6

Measuring period, s 1
Output interface for measured values Analog (1..10V) or Frequency (500…2000Hz)
Message interval, s 1…60 (RS232 or RS485)
Averaging time, s from 0…120
Measuring error, % ±0,5
Baud rate, bit/sec 9600
Input current, mA Max 20
Working temperature, °C -45 to 105
Ingress protection rating, IP IP67
DAC resolution, bit 12
Working principle (Capacitive Sensor)
Average service life, years 8



SKU: ETSFMS020

Brand

Soji Stability
