Description

General description

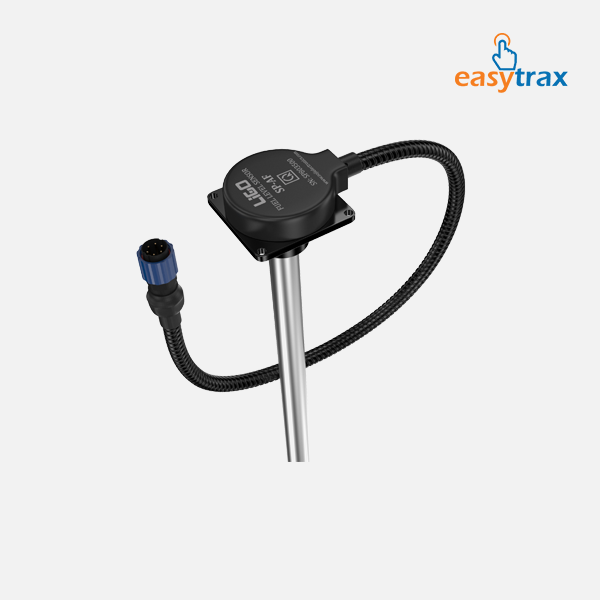

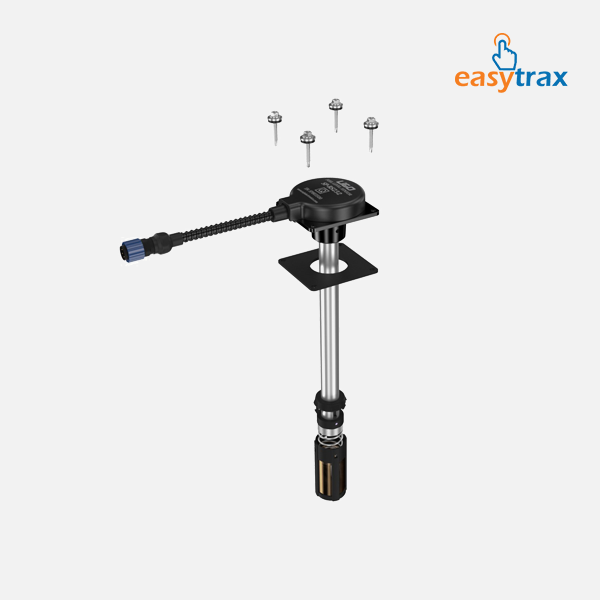

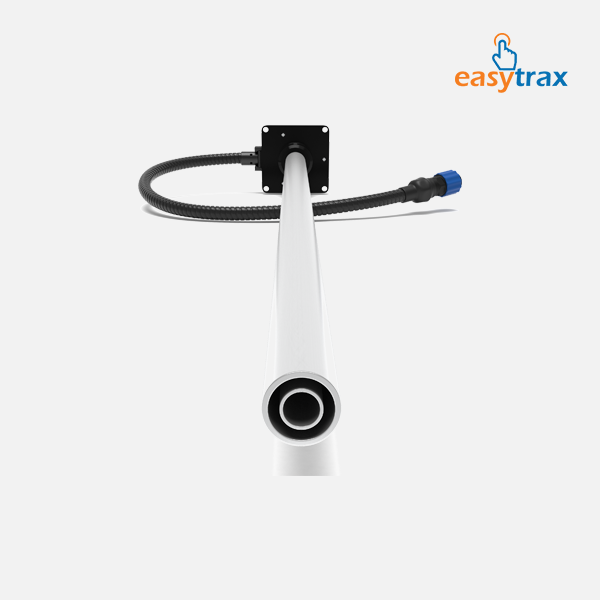

LIGO SP – RS485 is a special improvement line, a product of the research team of Soji electronics fuel level sensor. Changes in the mechanical design help the sensor achieve high accuracy and durability.

SPECIFICATIONS:

Parameter	Value
DC input voltage, V	9-37
Standard length  (L),mm	700, 1000, 1500…up to 6000 mm
Power consumption(W)  Typical Maximal At short circuit on analog output, maximum	0.24  0.4 1.6
Measuring period, s	1
Output interface for measured values	RS-232, RS-485
Message interval, s	1…60
Averaging time, s	from 0…120
Measuring error, %	±0,5
Baud rate, bit/sec	2400, 4800, 9600, 19200, 38400, 57600, 115200
Input current, mA	Max 20
Working temperature, °C	-45 to 105
Ingress protection rating, IP	IP67
DAC resolution, bit	12
Working principle	(Capacitive Sensor)
Average service life, years	8



SKU: ETSFMS022
