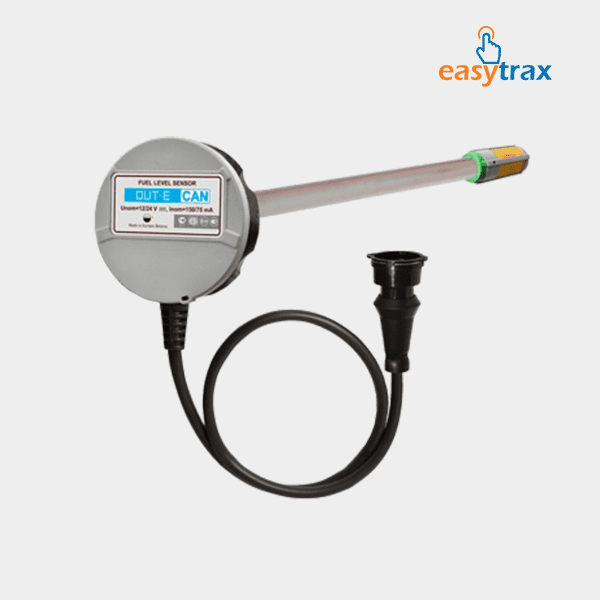

DUT-E fuel level sensors

DUT-E fuel level sensors

Sold By: Easytrax World


DUT-E fuel level sensors are used for accurate fuel level and volume measurement in tanks of vehicles and stationary units. DUT-E allows to determine current fuel volume and change in volume (refuelling or draining) of fuel in the tank.

DUT-E is used in GPS tracking and vehicle telematics systems as additional fuel sensor or as a replacement of standard built-in (factory) fuel level sensor. When used as a part of telematics system, DUT-E  allows to get reliable and accurate information on current fuel volume in the tank and to reveal misuse and fuel theft from tank. DUT-E also gives a general overview on fuel usage by vehicle or stationary unit.


Operating principle capacitive
Measurement inaccuracy, %, not more than 0.2 for stationary fuel tanks and standing vehicles;
1 for moving vehicles
Supply voltage, V 10-50
Overvoltage protection, V up to 100
Operating temperature, оC from -40 to +85
Relative measuring error (to the length of the measuring part), %, not more than ±1
Output signal
  • digital, CAN j1939/S6
  • digital, RS 232 (DUT-E COM protocol)
  • digital RS 485 (DUT-E COM protocol)
  • analog-frequency output 1-9 V / 500-1500 Hz;

* – other output are also available on request

Standard length, mm  350, 700, 1000
