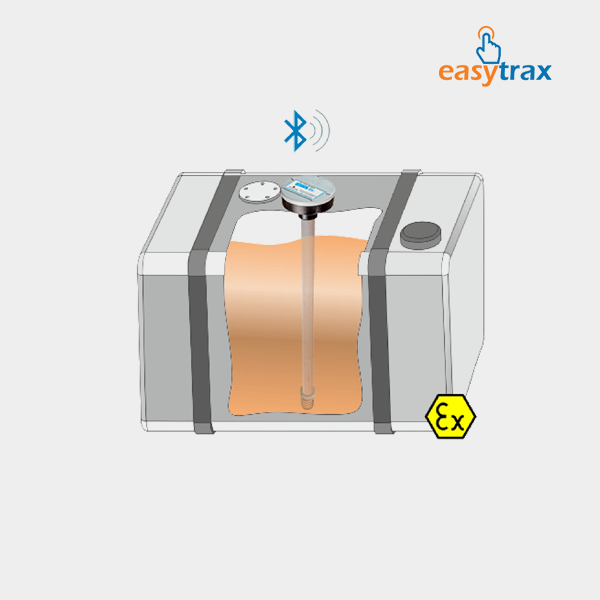

DUT-E S7 wireless sensor allows to measure current fuel volume and its changes in a fuel tank. DUT-E S7 is used as a part of vehicle telematics system (GPS vehicle tracking system) and provides reliable information on remaining fuel volume, fuel tank fill-up and draining volumes and helps fleets to set up clear fuel accounting and prevent fuel theft from vehicle’s tank. DUT-E S7 wireless fuel level sensor is also used for fuel level monitoring in stationary tanks.
Wireless data transfer is carried out using S7 Technology via BLE channel. BLE signal from DUT-E S7 can be received by compatible vehicle tracking unit (telematics unit) and/or any Android device.
DUT-E S7 can also be used as a “night watchman” to alert driver on fuel theft from vehicle’s tank, for example, when resting at night parking.
|Fuel level sensor operating principle||Capacitive|
|Wireless data transfer interface||Bluetooth 4.1|
|Tx Power, dBm||+4|
|Rx sensitivity, dBm||-88|
|Maximum distance between sensor and receiving device, m||10…20
(when mounted on a vehicle or inside a building)
up to 50
(when mounted within line-of-sight)
|Number of BLE-compatible device receiving signal simultaneously||Any number in DUT-E S7 transmitter’s operation range|
|Data transfer interval, s||5|
|Estimated lifetime of the sensor (battery life), years||5…10*|
|Temperature range, °C||-30…+80|
